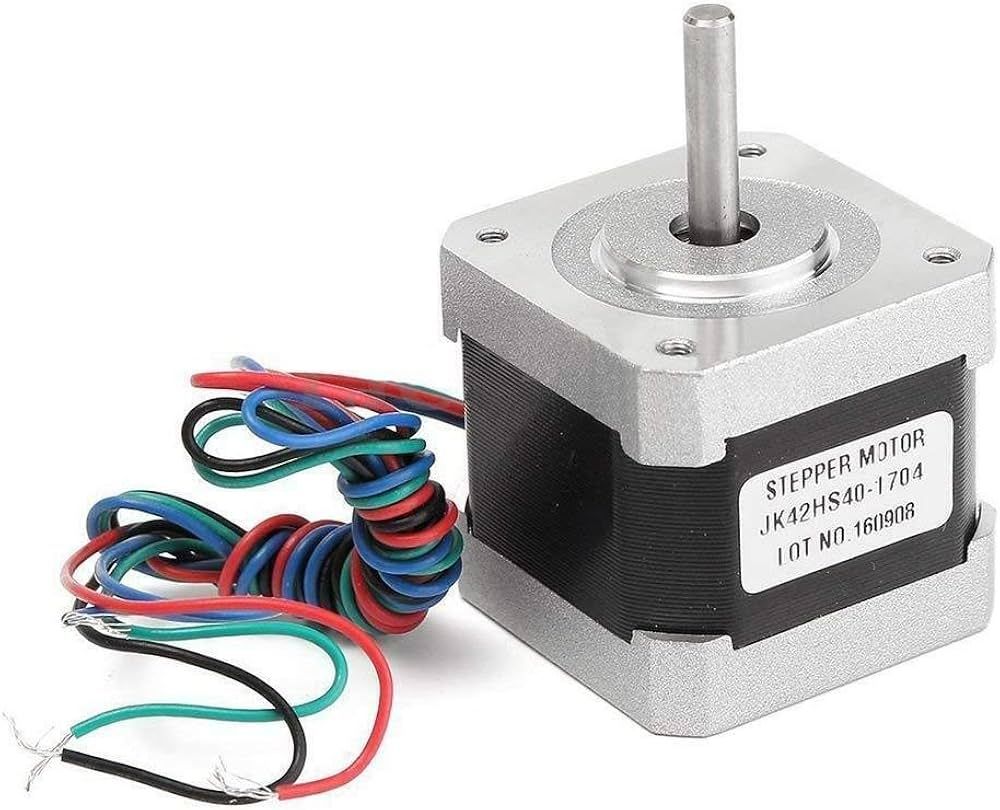

Moteur pas à pas NEMA 17 JK42HS40-1704

Caractéristiques:

• Resolution: 200 steps/rev (1.8 °)
• Rated voltage: 2,8 V
• Current consumption per coil: 1,7 A
• Coil resistance 1.65 Ω
• Winding inductance: 3.2 mH
• Holding torque: 4.0 - 4.2 kg. cm (0.4 - 0.42 Nm)
• Leads: bipolar (four wires)
• Shaft diameter: 5 mm
• Weight: 280 g
• Standard: NEMA 17
• Dimensions: 42 x 42 x 40 mm (without shaft)

Details in the technical documentation.
