Raspberry Pi 5 8GB

Description

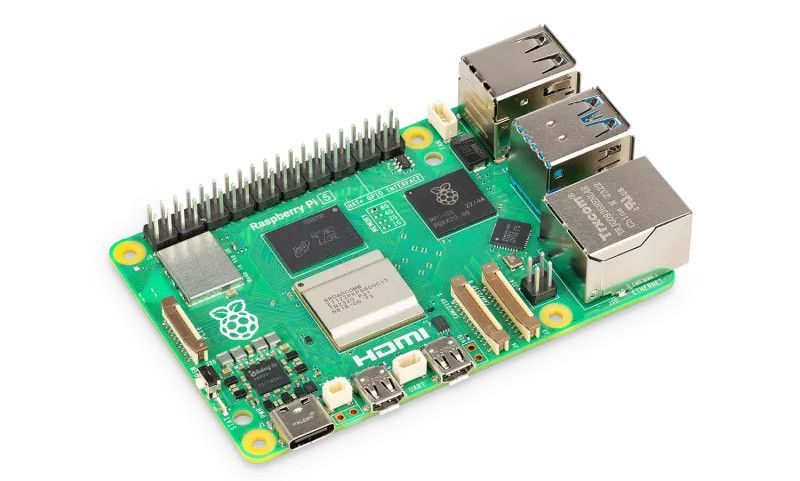

The next evolution of the Raspberry Pi is here! Get ready to embark on a new era of innovation and endless possiblilities with the all-new Raspberry Pi 5. Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4.

Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU, dual 4Kp60 display output over HDMI, and state-of-the-art camera support from a rearchitected Raspberry Pi 5 Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Due to the higher power consumption the Raspberry Pi 5 is recommended to be powered by 5V / 5A PD (Power Delivery) power supply. A case with enhanced passive or active cooling is recommended.

Features:

VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2

Dual 4Kp60 HDMI® display output with HDR support

4Kp60 HEVC decoder

LPDDR4X-4267 SDRAM (4GB or 8GB)

Dual-band 802.11ac Wi-Fi®

Bluetooth 5.0 / Bluetooth Low Energy (BLE)

microSD card slot, with support for high-speed SDR104 mode

2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

2 × USB 2.0 ports

Gigabit Ethernet, with PoE+ support

(requires separate PoE+ HAT)

2 × 4-lane MIPI camera/display transceivers

PCIe 2.0 x1 interface for fast peripherals

(requires separate M.2 HAT or other adapter)

5V/5A DC power via USB-C, with Power Delivery support

Raspberry Pi standard 40-pin header

Real-time clock (RTC), powered from external battery (battery sold separately)
