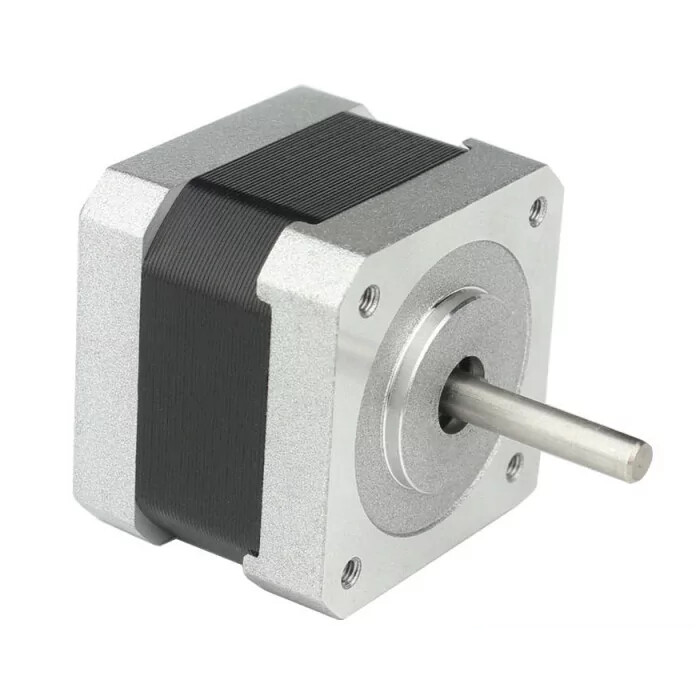

Moteur pas à pas NEMA 17 JK42HS34-1334AC 1.3A

Caractéristiques:

• Model: JK42HS34-1334AC.
• Type: hybrid.
• Phase: 2.
• Pitch angle: 1.8°.
• Motor dimensions: 42 x 34 mm.
• Stem: D-shaped 21 x 5mm.
• Insulation resistance: 100 MΩ min, 500 VDC.
• Insulation resistance: 500 VAC for one minute.
• Working current: 1.3A.
• Pitch angle accuracy: + – 5% (full pitch, no load).
• Resistance Accuracy: + – 10%.
• Inductance Accuracy: + – 20%.
• Temperature rise: 80 deg Max (rated current, 2 phases on).
• Ambient temperature:—20deg ~+50deg.
• Weight: 220g.
• color:black\silver.
• Technical sheet : https://www.microjpm.com/_files/200009042-ce051ce054/JK42HS40-1304F%20Datasheet.pdf
